Item Name | PVDF Diaphragm Valve |
Production Capacity | 1500mts Per Year |
Material | 100% Virgin PVDF |
Key Word | PVDF Valves |
Color | White |
Connection | Welding |
Pressure | PN10 |
Standard | ISO10931-2005 |
Certification | SGS,CE |
Brand | XITA |

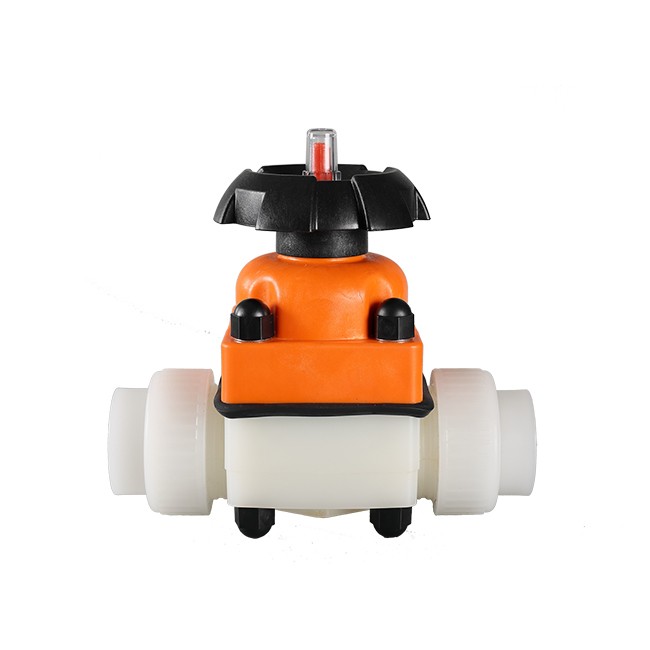

The XITA PVDF Diaphragm Valve is manufactured from 100% virgin PVDF material and fully complies with ISO10931-2005 standards. Certified by both SGS and CE, this high-performance PVDF valve is specifically engineered for industries such as chemical processing, pharmaceuticals, and semiconductors, where resistance to highly corrosive media is critical. It offers an effective solution to prevent valve corrosion and contamination during aggressive fluid transport.
Product Features:
100% Virgin PVDF Construction
Made from pure, high-grade PVDF resin to ensure exceptional chemical resistance and long-term durability. The material’s inertness makes this PVDF diaphragm valve ideal for ultra-clean and corrosive applications.
Welded Connection Design
Thermal fusion welding ensures a leak-free seal, eliminating the risk of leakage common with threaded connections—enhancing the operational reliability of the PVDF valve system.
ISO Certified Compliance
Built in accordance with ISO10931-2005 standards, making it suitable for global industrial deployment and integration.
PN10 Pressure Rating
Designed to withstand up to 1.0 MPa working pressure, making the PVDF diaphragm valve compatible with most standard process piping systems.
SGS and CE Dual Certification
Guarantees product quality and compliance with EU regulatory standards for safety and performance.
Annual Output of 1,500 Tons
Robust manufacturing capacity ensures reliable supply for large-scale procurement and project needs.

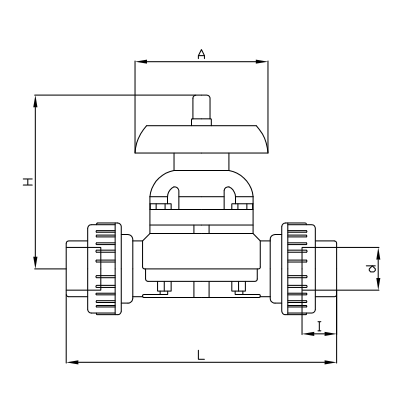

WDN | d | A | L | I | H |
15 | 20 | 65 | 140 | 18.5 | 99 |
20 | 25 | 65 | 142 | 21 | 99 |
25 | 32 | 94 | 176 | 26 | 136 |
32 | 40 | 94 | 180 | 28 | 136 |
40 | 50 | 118 | 245 | 3 | 178 |
50 | 63 | 118 | 258 | 37 | 178 |
65 | 75 | 189 | 343 | 42.5 | 240 |
80 | 90 | 189 | 365 | 50 | 240 |
100 | 110 | 239 | 568 | 69 | 277 |
Application Scenarios of PVDF Diaphragm Valve
The PVDF Diaphragm Valve is widely used in various industrial systems that demand exceptional chemical resistance and durability. Engineered from high-purity PVDF material, the PVDF valve offers safe and efficient fluid control across multiple sectors:
Chemical Engineering
Ideal for handling strong acids, alkalis, and organic solvents, the PVDF valve ensures reliable and leak-free performance in aggressive chemical processing environments.
Salt Production & Desalination
Highly resistant to seawater corrosion, the PVDF Diaphragm Valve is perfectly suited for fluid control in seawater desalination plants and salt chemical production lines.
Mining Industry
With excellent resistance to mineral slurries and acidic wastewater, the valve helps extend the service life of pipeline systems in mining operations.
Water Supply Systems
Safe and non-toxic, the PVDF valve meets food-grade standards and is suitable for use in potable water distribution networks.
Agricultural Engineering
Designed for use in fertilizer and pesticide delivery systems, the valve resists chemical degradation, ensuring safety and reliability in agricultural applications.
